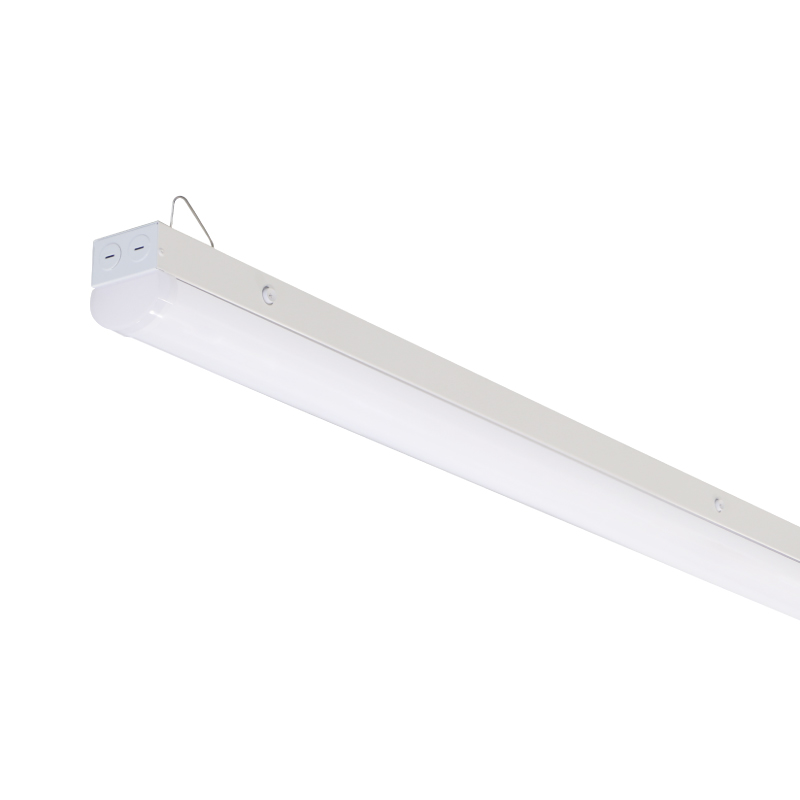

IKIO’s Apex Linear Low Bay comes with CCT and Power selectable capability, making it not only an energy-efficient alternative to traditional lights but also a high-performance commercial lighting solution with better control. Given the flexibility, you can choose this luminaire for a variety of lighting applications while using lesser number of SKUs. Apex is easy to install and has features like high light output, smooth color rendering, dimming options, and even distribution.
| Efficacy (lm/W) | Up to 158 lm/W |
| Power Selectable (W) |
70 W-60 W- 50 W |
| CCT Selectable (K) | 3000 K - 4000 K - 5000 K |
| CRI | 84-86-83 |
| Voltage | AC 120-277 V 50/60 Hz |
| Sensor Type (Only for Integrated Sensor fixtures) | Daylight Sensor, Occupancy Sensor, Multifunction Sensor |
| Beam Angle | 130° |
| Dimming | 0-10 V Continuous Dimming (Min. Dimming Range <10%) |
| Operating Temperature | -4° F to +113° F |
| IP Rating | IP4X |
| Housing | Iron + PC Lens (Round) |
| Power | SKU Number | Efficacy | Lumen Output | Ordering Part Number | Qualified Part Number | Technical Data Sheet |
|---|---|---|---|---|---|---|
| 70 W-60 W-50 W | 662187482798 | 141.45 lm/W-158.71 lm/W-148.08 lm/W | 10134.8 lm-10957.4 lm-10588.0 lm | IK-LLB08-70W-30/40/50K-MV-WH-S | Not Qualified Yet | Download |
| 70 W-60 W-50 W | 662187482781 | 141.45 lm/W-158.71 lm/W-148.08 lm/W | 10134.8 lm-10957.4 lm-10588.0 lm | IK-LLB08-70W-30/40/50K-MV-WH | Not Qualified Yet | Download |
