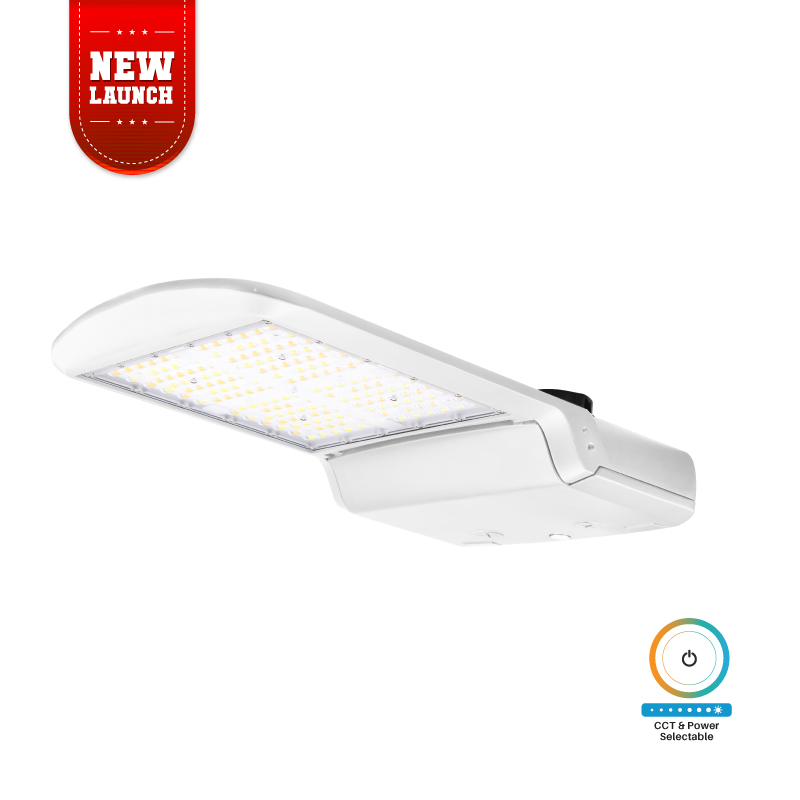

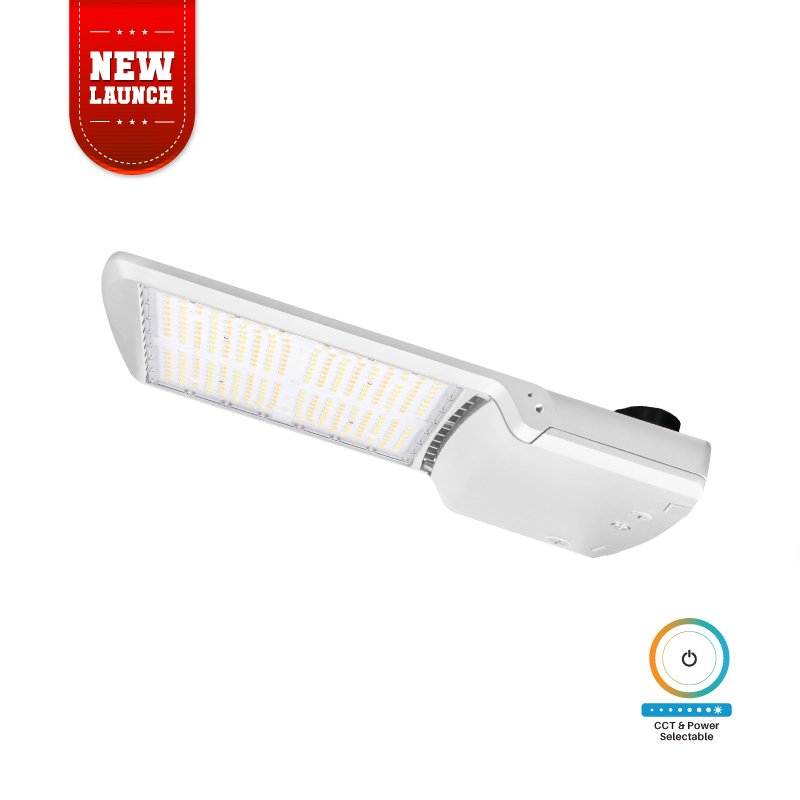

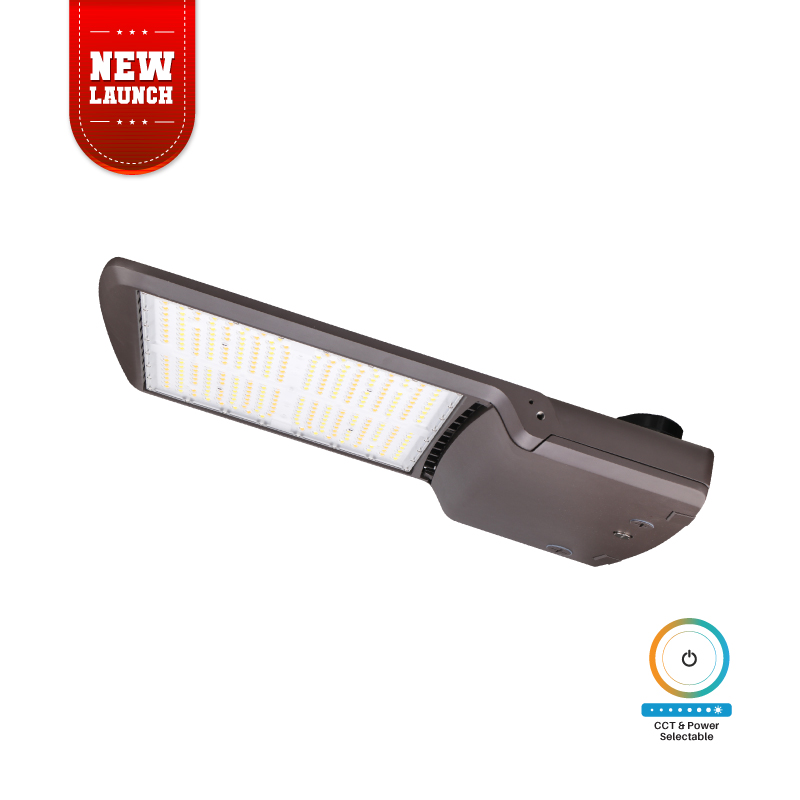

IKIO’s Areon Area Luminaire combines architectural form and versatility to make an excellent lighting solution for new construction or retrofit applications. Its CCT & Power selectable capability, when added to features like custom-engineered optics, dimming options, and high-output LEDs, delivers the highest levels of convenience to users while resulting in clear, uniform illumination and lasting performance.
| Efficacy (lm/W) | Up to 152 lm/W |
| Power Selectable (W) |
Option 1 : 150 W-100 W-70 W Option 2 : 300 W-240 W-200 W-150 W |
| CCT Selectable (K) | 3000 K-4000 K-5000 K |
| CRI | 72-73-71 |
| Voltage | AC 100-277 V, 277-480 V 50/60 Hz |
| Distribution | Type 3 |
| Dimming | 0-10 V Dimming |
| Operating Temperature | -40° F to +122° F |
| IP Rating | IP65 |
| Housing | Die-cast Aluminum |
| Power | SKU Number | Efficacy | Voltage | Lumen Output | Finish | Ordering Part Number | Qualified Part Number | Technical Data Sheet | IES File |
|---|---|---|---|---|---|---|---|---|---|

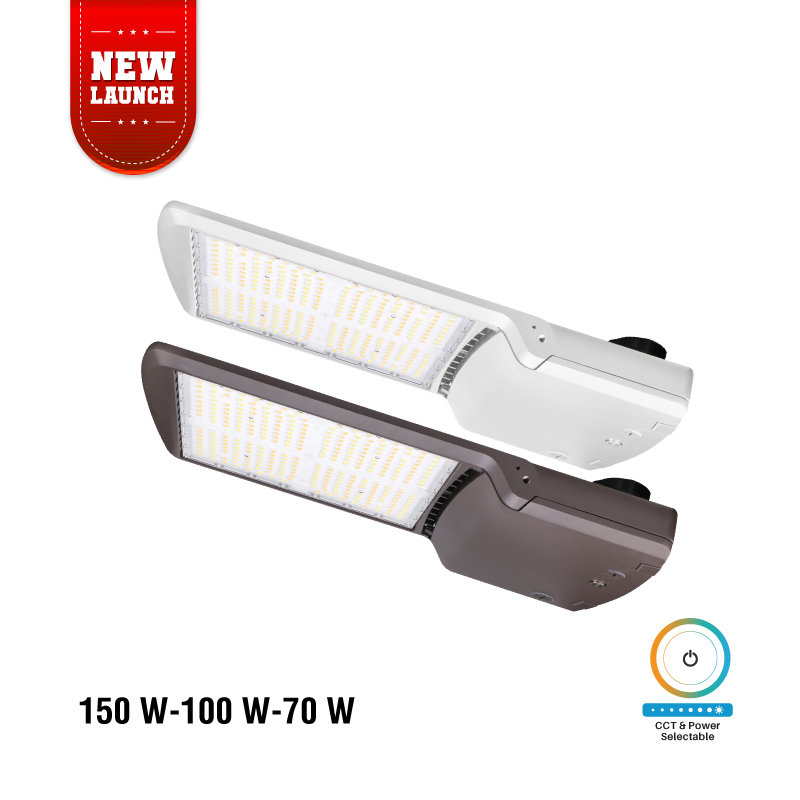

| 150 W-100 W-70 W | 662187482453 | 136.13 lm/W-152.32 lm/W-142.91 lm/W | 120-277 V | 19845.6 lm-21335.5 lm-19997.4 lm | Bronze | IK-SBSLG2-150W-30/40/50K-MV-BR | Not Qualified Yet | Download | Download |
| 150 W-100 W-70 W | 662187482460 | 136.13 lm/W-152.32 lm/W-142.91 lm/W | 120-277 V | 19845.6 lm-21335.5 lm-19997.4 lm | White | IK-SBSLG2-150W-30/40/50K-MV-WH | Not Qualified Yet | Download | Download |

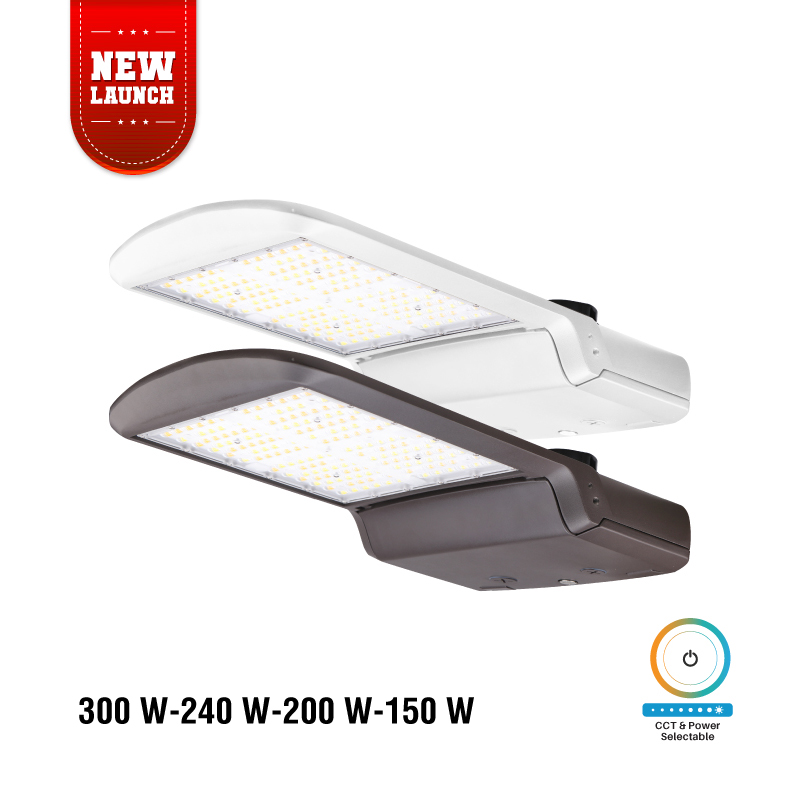

| 300 W-240 W-200 W-150 W | 662187482477 | 138.87 lm/W-144.58 lm/W-150.62 lm/W-161.39 lm/W | 120-277 V | 44517 lm-37117 lm-32151 lm-25459 lm | Bronze | IK-SBSLG2-300W-30/40/50K-MV-BR | Not Qualified Yet | Download | Download |
| 300 W-240 W-200 W-150 W | 662187482484 | 138.87 lm/W-144.58 lm/W-150.62 lm/W-161.39 lm/W | 120-277 V | 44517 lm-37117 lm-32151 lm-25459 lm | White | IK-SBSLG2-300W-30/40/50K-MV-WH | Not Qualified Yet | Download | Download |
| 300 W-240 W-200 W-150 W | 662187482491 | 139.07 lm/W-144.24 lm/W-150.28 lm/W-159.72 lm/W | 277-480 V | 43574 lm-36544 lm-31463 lm-25331 lm | Bronze | IK-SBSLG2-300W-30/40/50K-HV-BR | Not Qualified Yet | Download | Download |
| 300 W-240 W-200 W-150 W | 662187482514 | 139.07 lm/W-144.24 lm/W-150.28 lm/W-159.72 lm/W | 277-480 V | 43574 lm-36544 lm-31463 lm-25331 lm | White | IK-SBSLG2-300W-30/40/50K-HV-WH | Not Qualified Yet | Download | Download |
