Delphi

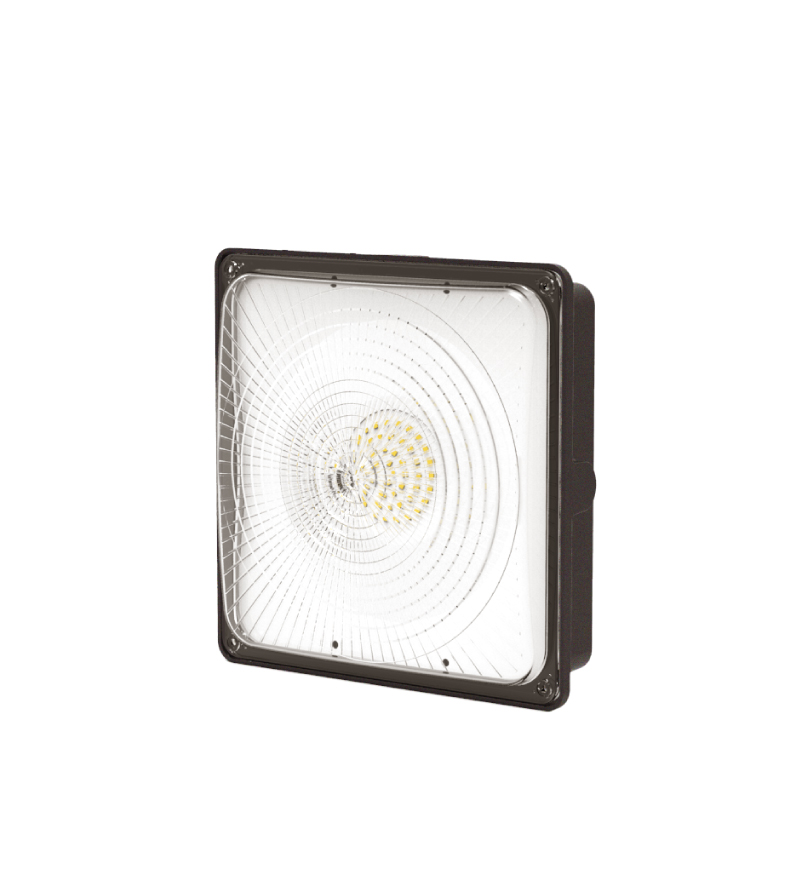

Fuel Pump Canopy Light

Delphi Fuel Pump Canopy Light promotes safety in commercial and industrial spaces while proving to be a high-performing, energy-efficient alternative to traditional lighting. It comes with CCT & power selectable technology and a low profile, which make it suitable for a variety of applications. In addition, the luminaire’s sturdy design and powder coat finish only add to its longevity and durability. The fixture supports both pendant and surface mounting.

PRODUCT FEATURES

  • Low-profile, stylish design with durable powder coat finish.
  • CCT & power selectable option ensures flexibility for varied applications.
  • Suitable for ambient operating temperature.
  • Meets the FCC Part 15, Part B, Class A standards for conducted and radiated emissions.
  • Comes with dimming capability (0-10 V).
  • Surge-protected and IP65 rated for wet locations.
Product Details
Efficacy (lm/W) 123.21 lm/W
Power Selectable (W) 30 W-40 W-49.8 W
CCT Selectable (K) 3000 K-4000 K-5000 K
CRI 74
Voltage AC 120-347 V, 50/60 Hz
Dimming Continuous Dimming Above 10%
Operating Temperature -40° F to +122° F
IP Rating IP65
Housing Aluminum
Technical Resources
Product Sheet
Installation Instructions
SKU Details
Power SKU Number Efficacy CCT Voltage Lumen Output Finish Qualified part number Ordering part number Technical Data Sheet IES File
30 W-40 W-50.8 W 662187479583 124.46 lm/W 3000 K-4000 K-5000 K 120-277 V 3900 lm-4978.4 lm-6320 lm Bronze IK-CPSL-0050W-CS-[S;Blank]-[BR;WH;BK] IK-CPSL-0050W-CS-[S;Blank]-[BR;WH;BK] Download Download
30 W-40 W-49.8 W 662187482064 123.21 lm/W 3000 K-4000 K-5000 K 120-347 V 3900 lm-4928.4 lm-6135 lm Bronze IK-CPSL-H-0050W-CS-[S;Blank]-[BR;WH;BK] IK-CPSL-H-0050W-CS-[S;Blank]-[BR;WH;BK] Download Download
