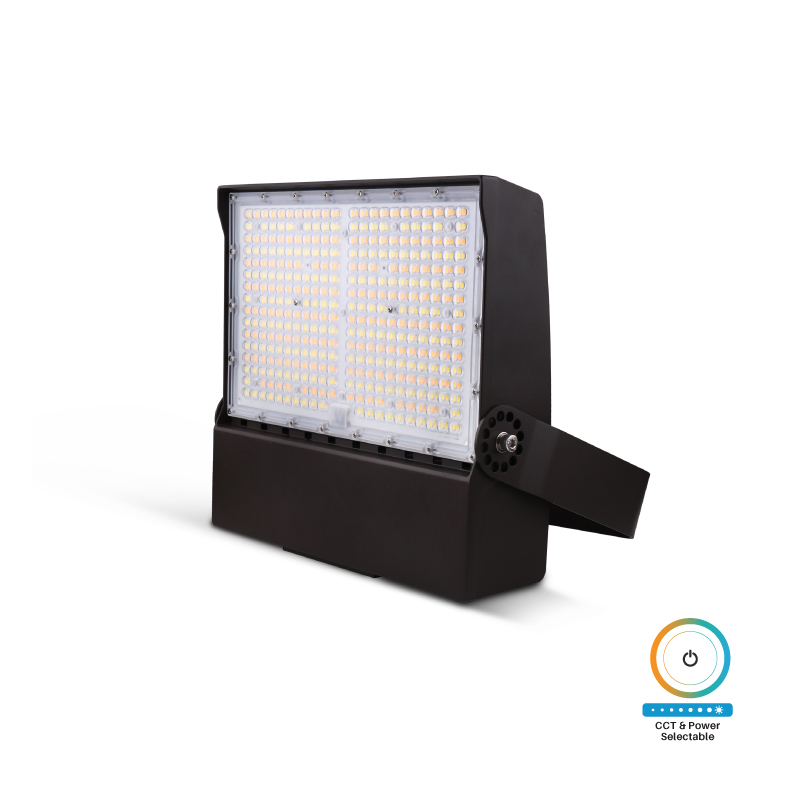

Magnus
Architectural Flood Light

IKIO’s Magnus Architectural Flood Light is a next-gen color and wattage selectable outdoor luminaire designed to provide high performance, durability, and illumination in expansive commercial and industrial spaces. With features like sturdy aluminum housing, a rugged die-cast design, and integrated cooling fans, Magnus ensures optimum heat dissipation, resulting in the stability of the lighting system and a long lifespan.

PRODUCT FEATURES

  • CCT & power selectable capability.
  • Superior efficacy, rendering clear light output.
  • Dimming capable (0-10 V).
  • Integrated cooling fans for optimum heat dissipation.
  • IP65 rated - suitable for wet locations.
  • Uniform illumination with no flickering or humming.
Product Details
Efficacy (lm/W) Up to 161 lm/W
Power Selectable (W) 205 W-150 W-100 W
CCT Selectable (K) 3000 K-4000 K-5000 K
CRI 84
Voltage AC 120-277 V V 50/60 Hz
Beam Angle 240°
Dimming 0-10 V Dimming
Operating Temperature -10° F to +122° F
IP Rating IP65
Housing Die-cast Aluminum
Technical Resources
Product Sheet
Installation Instructions
SKU Details
Power SKU Number Efficacy CCT Voltage Lumen Output  Beam angle Finish Ordering Part Number Qualified Part Number Technical Data Sheet IES File
205 W- 150 W-100 W 662187482187 152.89 lm/W-161.69 lm/W-171.15 lm/W 3000 K-4000 K-5000 K 120-277 V 31668 lm-25176 lm-17975 lm 140°x120° Bronze IK-FLBO2-205W-30/40/50K-MV-BR Not Qualified Yet Download Download
