Upstar

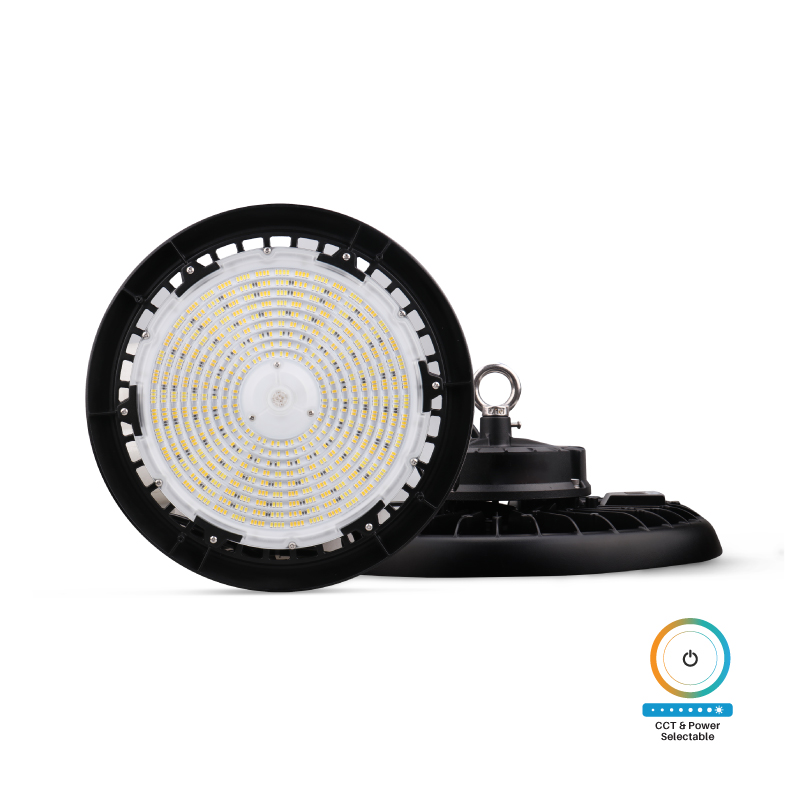

UFO High Bay

IKIO’s Upstar UFO High Bay comes with CCT and Power selectable capability, making it suitable for a variety of lighting applications. The luminaire has an easy-to-install design and features like high light output and dimming options, all of which allow Upstar to easily replace traditional fixtures in your commercial or industrial spaces and offer the level and quality of illumination you seek.

PRODUCT FEATURES

  • Robust & Powerful Round High Bays fabricated to accommodate applications with 40'+ mounting heights.
  • Greater flexibility with IKIO’s CCT Selectable (easily switch between 3500-4000-5000 K) & Power Selectable (easily switch between 240-200-150-100 W) feature.
  • Durable Performance with powder-coated die-cast aluminum housing, polycarbonate lens, and multiple heat sinks (effective thermal regulation).
  • Super tough against the odds with 6kV Built-in Surge Protection and wet location suitability (IP65 Rated).
  • Easy-to-install Design that supports Quick Screw-in during lighting installations, making upgrades hassle-free.
Product Details
Efficacy (lm/W) Up to 130 lm/W
Power Selectable (W) 240 W-200 W-150 W-100 W
CCT Selectable (K) 3500 K-4000 K-5000 K
CRI 80+
Voltage AC 120-277 V 50/60 Hz
Beam Angle 90°
Dimming 0-10 V Dimming
Operating Temperature -40 °F ~ +122 °F
IP Rating IP65
Housing Die-cast Aluminum + Polycarbonate
Technical Resources
Product Sheet
Installation Instructions
SKU Details
Power SKU Number Efficacy CCT Voltage Lumen Output  Beam angle Finish Ordering Part Number Qualified Part Number Technical Data Sheet IES File
240 W-200 W-150 W-100 W 662187482255 144.57 lm/W-149.79 lm/W-157.59 lm/W-168.75 lm/W 3500 K-4000 K-5000 K 120-277 V 36288 lm-30617 lm-24866 lm-17299 lm 90° Black IK-UFHB-240W-35/40/50K-BL Not Qualified Yet Download Download
