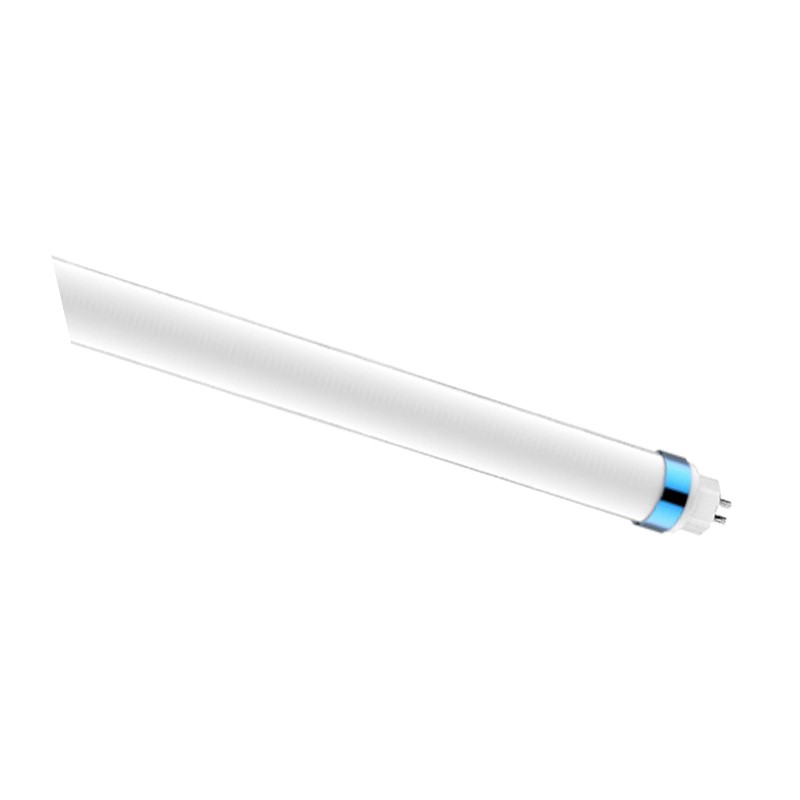

IKIO T5 Tube – Type B is designed for direct replacement of existing T5 fluorescent lighting systems. Its unique design creates a perfectly uniform visual appearance which cannot be distinguished from traditional fluorescent fixtures. These tubes are an ideal solution for customers who have high light output requirements. The tube is outfitted with an internal IKIO driver that works with in-line voltage.
| Efficacy (lm/W) | 150 lm/W, 160 lm/W |
| Power (W) | 15 W, 18 W, 24 W |
| CCT (K) | 2700 K, 5000 K |
| CRI | 80+ |
| Voltage | AC 100-277 V 50/60 Hz |
| Beam Angle | 360° |
| Dimming | No |
| Operating Temperature | -13° F to +113° F |
| IP Rating | IP20 |
| Housing | Polycarbonate and Aluminum |
| Power | SKU Number | CCT | Model | Efficacy | Voltage | Lumen Output (lm) | Size | Qualified part number | Ordering part number | Technical Data Sheet | IES File |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 W | 662187557410 | 2700 K | T5 Tube Type B | 150 lm/W | AC 100-277 V | 3600 lm | 4 ft | Not Qualified Yet | IK-T504-0024-DN-2630B | Download | On Request |
| 24 W | 662187547725 | 5000 K | T5 Tube Type B | 150 lm/W | AC 100-277 V | 3600 lm | 4 ft | Not Qualified Yet | IK-T504-0024-DN-5000B | Download | Download |
| 15 W | 662187534312 | 2700 K | T5 Tube Type B | 160 lm/W | AC 100-277 V | 2400 lm | 4 ft | Not Qualified Yet | IK-T504-0015-DN-2700B | Download | Download |
| 15 W | 662187534336 | 4000 K | T5 Tube Type B | 160 lm/W | AC 100-277 V | 2400 lm | 4 ft | Not Qualified Yet | IK-T504-0015-DN-4000B | Download | Download |
| 15 W | 662187548364 | 5000 K | T5 Tube Type B | 160 lm/W | AC 100-277 V | 2400 lm | 4 ft | Not Qualified Yet | IK-T504-0015-DN-5000B | Download | Download |
| 18 W | 662187534350 | 2700 K | T5 Tube Type B | 160 lm/W | AC 100-277 V | 2880 lm | 4 ft | Not Qualified Yet | IK-T504-0018-DN-2630B | Download | Download |
