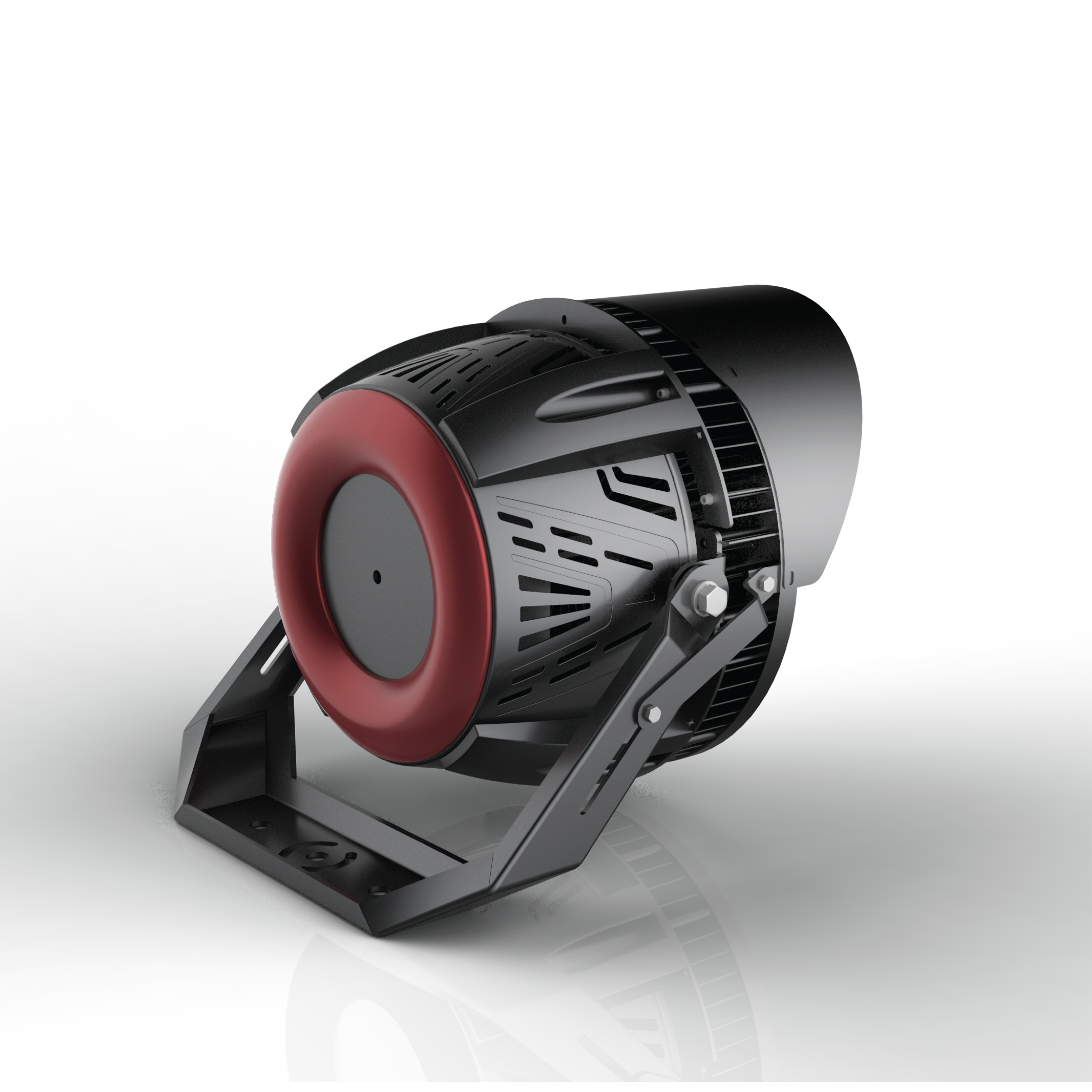

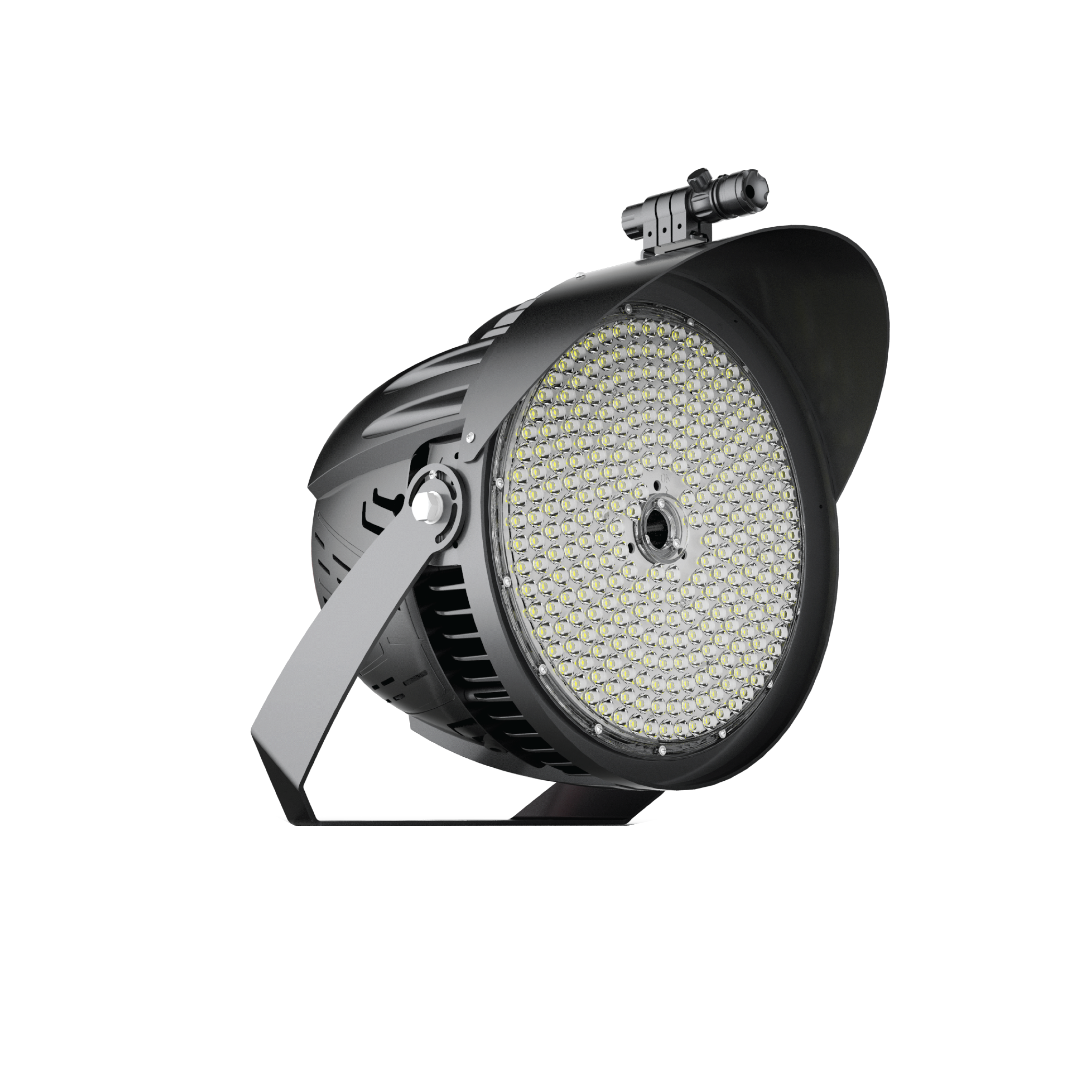

IKIO Dynamo 3 Stadium Flood Light with aluminum alloy composition, rugged die-cast design, and integrated cooling fans, to ensure optimum heat dissipation. Seamless link of aerometal materials and numerous vents on the heat sink improves heat management and ensures the stability of the light system.
• Superior aesthetics with a modern look.
• Excellent heat management system courtesy of multiple vents.
• 240° adjustable angle.
• Multi-faceted optic design to distribute light evenly and reduce glare.
• Resistant to electrical interference due to high quality chip.
| Efficacy (lm/W) | Up to 161 lm/W |
| Power (W) |
300 W, 400 W, 500 W, 600W |
| CCT (K) |
3000 K / 3500 K / 4000 K / 4500 K / 5000 K |
| CRI | >70 Ra |
| Voltage |
AC 100 - 277 V / AC 240 - 480 V, 50/60 Hz |
| Beam Angle | 30° |
| Dimming |
Continuous Dimming to 10% or Below (INVENTRONICS DRIVER) |
| Operating Temperature | -22° F to +122° F |
| IP Rating | IP66 |
| Housing | Die-cast Aluminum |
| EPA | 1.59 ft² () |
| Wind Rating | 127.5 mph |
| BUG Rating | B5 - U3 - G1 |
| Power | SKU Number | CCT | Voltage | Lumen Output | Ordering part number | Qualified part number | Technical Data Sheet | IES File |
|---|---|---|---|---|---|---|---|---|
| 300 W | 662187461571 | 3000 K | 100-277 V | 45371.53 lm | IK-SLEL2-0300-D-30 (30D) | Not Qualified Yet | Download | Download |
| 300 W | 662187461489 | 3000 K | 277-480 V | 45235.29 lm | IK-SLEL2-0300-DV-30 (30D) | Not Qualified Yet | Download | Download |
| 300 W | 662187461588 | 4000 K | 100-277 V | 47540.36 lm | IK-SLEL2-0300-D-40 (30D) | Not Qualified Yet | Download | Download |
| 300 W | 662187461496 | 4000 K | 277-480 V | 47038.16 lm | IK-SLEL2-0300-DV-40 (30D) | Not Qualified Yet | Download | Download |
| 300 W | 662187477015 | 5000 K | 100-277 V | 49709.19 lm | IK-SLEL2-0300-D-50 (30D) | Not Qualified Yet | Download | Download |
| 300 W | 662187461502 | 5000 K | 277-480 V | 48841.03 lm | IK-SLEL2-0300-DV-50 (30D) | Not Qualified Yet | Download | Download |
| 400 W | 662187461618 | 3000 K | 100-277 V | 61183.49 lm | IK-SLEL2-0400-D-30 (30D) | Not Qualified Yet | Download | Download |
| 400 W | 662187461519 | 3000 K | 277-480 V | 61383.12 lm | IK-SLEL2-0400-DV-30 (30D) | Not Qualified Yet | Download | Download |
| 400 W | 662187461625 | 4000 K | 100-277 V | 62129.65 lm | IK-SLEL2-0400-D-40 (30D) | Not Qualified Yet | Download | Download |
| 400 W | 662187461526 | 4000 K | 277-480 V | 62311.28 lm | IK-SLEL2-0400-DV-40 (30D) | Not Qualified Yet | Download | Download |
| 400 W | 662187528441 | 5000 K | 100-277 V | 63075.80 lm | IK-SLEL2-0400-D-50 (30D) | Not Qualified Yet | Download | Download |
| 400 W | 662187461533 | 5000 K | 277-480 V | 63239.45 lm | IK-SLEL2-0400-DV-50 (30D) | Not Qualified Yet | Download | Download |
| 496.2 W | 662187528465 | 3000 K | 100-277 V | 74529.2 lm | IK-SLEL2-0500-D-30 (30D) | IK-SLEL2-0500-D-30 | Download | Download |
| 497.2 W | 662187461670 | 3000 K | 277-480 V | 74928 lm | IK-SLEL2-0500-DV-30 (30D) | IK-SLEL2-0500-DV-30 | Download | Download |
| 495.6 W | 662187461649 | 3500 K | 100-277 V | 75028.1 lm | IK-SLEL2-0500-D-35 (30D) | IK-SLEL2-0500-D-35 | Download | Download |
| 496.5 W | 662187544298 | 3500 K | 277-480 V | 75595.5 lm | IK-SLEL2-0500-DV-35 (30D) | IK-SLEL2-0500-DV-35 | Download | Download |
| 495.6 W | 662187475677 | 4000 K | 100-277 V | 75526.9 lm | IK-SLEL2-0500-D-40 (30D) | IK-SLEL2-0500-D-40 | Download | Download |
| 496.5 W | 662187544304 | 4000 K | 277-480 V | 76263 lm | IK-SLEL2-0500-DV-40 (30D) | IK-SLEL2-0500-DV-40 | Download | Download |
| 495.6 W | 662187461663 | 4500 K | 100-277 V | 76025.8 lm | IK-SLEL2-0500-D-45 (30D) | IK-SLEL2-0500-D-45 | Download | Download |
| 496.5 W | 662187544311 | 4500 K | 277-480 V | 76930.6 lm | IK-SLEL2-0500-DV-45 (30D) | IK-SLEL2-0500-DV-45 | Download | Download |
| 495.6 W | 662187547107 | 5000 K | 100-277 V | 76524.7 lm | IK-SLEL2-0500-D-50 (30D) | IK-SLEL2-0500-D-50 | Download | Download |
| 496.5 W | 662187544328 | 5000 K | 277-480 V | 77598.1 lm | IK-SLEL2-0500-DV-50 (30D) | IK-SLEL2-0500-DV-50 | Download | Download |
| 495 W | 662187461656 | 5000 K | 100-277 V | 77023.5 lm | IK-SLEL2-0500-D-57 (30D) | IK-SLEL2-0500-D-57 | Download | Download |
| 495.9 W | 662187539553 | 5000 K | 277-480 V | 78265.6 lm | IK-SLEL2-0500-DV-57 (30D) | IK-SLEL2-0500-DV-57 | Download | Download |
| 600 W | 662187461700 | 3000 K | 100-277 V | 84656.95 lm | IK-SLEL2-0600-D-30 (30D) | Not Qualified Yet | Download | Download |
| 600 W | 662187461540 | 3000 K | 277-480 V | 87902.82 lm | IK-SLEL2-0600-DV-30 (30D) | Not Qualified Yet | Download | Download |
| 600 W | 662187528540 | 4000 K | 100-277 V | 86073.06 lm | IK-SLEL2-0600-D-40 (30D) | Not Qualified Yet | Download | Download |
| 600 W | 662187461557 | 4000 K | 277-480 V | 89329.55 lm | IK-SLEL2-0600-DV-40 (30D) | Not Qualified Yet | Download | Download |
| 600 W | 662187479705 | 5000 K | 100-277 V | 87489.17 lm | IK-SLEL2-0600-D-50 (30D) | Not Qualified Yet | Download | Download |
| 600 W | 662187461564 | 5000 K | 277-480 V | 90756.28 lm | IK-SLEL2-0600-DV-50 (30D) | Not Qualified Yet | Download | Download |
